AC221 - KC Global Procurement


Original price was: £1,000.00.Current price is: £800.00.

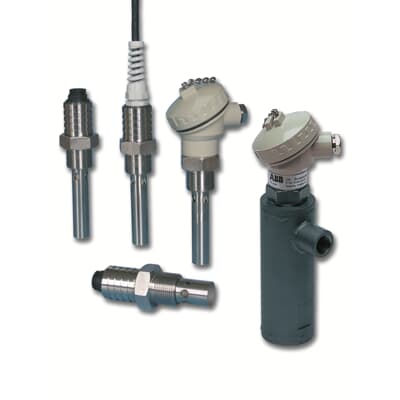

The AC221 conductivity cell is designed for insertion in pipelines, vessels and process sample lines in power plants, ion-exchangers, reverse osmosis and chip cleaning applications. The cells are constructed with stainless steel electrodes and are resistant to polarization, requiring virtually no maintenance. A choice of cable connection methods is available, including a detachable connector that eliminates incorrect connections. Critical temperature measurement is included with a world-beating response of less than 30 seconds, enabling rapid compensation and remote output.


  • Stainless steel electrodes enabling measurements down to 0.055 µS/cm ultra-pure water
  • 3/4 in. BSP or NPT process connection
  • Choice of 0.01 or 0.10 cell constants
  • Integral Pt100 temperature sensor
  • Maximum temperature 200 °C (392 °F)*
  • Maximum pressure 20 bar (290 psi)
  • Rapid temperature measurement T90 < 30 s
  • Problem-free, integral, terminal-head or detachable cable connection
  • Ingress protection IP 68* When used with ABB high temperature cable
