KC Controls selects Ashcroft products that are the benchmark in pressure and temperature measurement. Used in wastewater treatment facilities, biotech and pharmaceutical labs, medical applications, semiconductor facilities, refineries, power generation plants and many more.
Showing 1–9 of 16 results
-
Sale!
1020 Christmas Tree Pressure Gauge
The Ashcroft® 1020 Christmas tree gauge is used specifically within oil and gas fields.
- Accuracy: ASME B40.100 Grade 1A (±1% of span)
- Dial Size and Case Style 4.5″ Open front
- Ranges:Up to 20,000 PSI – 1/2″ NPT, 1/4″ NPT
-
Sale!
1109 Pressure Gauge
The Ashcroft® 1109 pressure gauge is a rugged instrument and an ideal choice when an ASME gauge with a solid front stainless steel case is a requirement. This model combines elements of reliability, performance and safety. An ideal product that serves extremely well on challenging installation points.
Key Features:
- Solid-front case design for safety
- Epoxy-coated system offers superior corrosion resistance
- PLUS!™ Performance (option) dampens vibration, shock and pulsation effects; provides liquid-fill performance in a dry gauge
Specifications:
- Accuracy: ±1/2% full scale (ASME B40.100 Grade 2A)
- Pressure Ranges: Vacuum to 100,000 psi
- Dial size: 4-1/2″
- Bourdon tube / socket: 316L stainless steel
- Case: stainless steel; solid-front safety design
- Dry, liquid-filled and PLUS!™ versions
-
Sale!
1187 Low Pressure Bellows Gauge
The Ashcroft® 1187 bellows gauge is used when low pressure measurement is a requirement.
- Accuracy: ASME B40.100 Grade A (±2-1-2% of span) Available with optional ASME B40.100 Grade 1A (±1% of span)
- Dial Size and Case Style: 4.5″ Solid front
- Ranges: 10 in H20 to 10 PSI including Vacuum and Compound
-
Sale!
1188 Low Pressure Bellows Gauge
The Ashcroft® 1188 bellows gauge is used when low pressure measurement is a requirement.
- Accuracy: ASME B40.100 Grade A (±2-1-2% of span) Available with optional ASME B40.100 Grade 1A (±1% of span)
- Ranges: 10 in H20 to 10 PSI including Vacuum and Compound
-
Sale!
1189 Low Pressure Bellows Gauge
The Ashcroft® 1189 bellows gauge is used when low pressure measurement is a requirement.
- Accuracy: ASME B40.100 Grade A (±2-1-2% of span) Available with optional ASME B40.100 Grade 1A (±1% of span)
- Dial Size and Case Style: 4.5″, ^” Solid front
- Ranges: 10 in H20 to 10 PSI including Vacuum and Compound
-
Sale!
1209 Process Gauge
The Ashcroft® 1209 process pressure gauge provides dependability, safety and performance.
- Accuracy: ±0.5% full scale (ASME B40.100 Grade 2A)
- Dial Size and Case Style: 4.5″ Stainless Steel
- Ranges: Vacuum to 1500 PSI/2000 to 20,000 PSI/50,000 to 100,000 PSI
-
Sale!
1259 Process Pressure Gauge
The Ashcroft® 1259 process gauge is used throughout process and industrial markets, and is known for its reliability, safety and performance.
- Accuracy: ASME B40.100 Grade 2A (±0.5% of span)
- Accuracy: ASME B40.100 Grade 2A (±0.5% of span)
- Ranges: Vacuum, Compound, 15 to 20,000 psi
-
Sale!
1279 Duragauge Pressure Gauge
The Ashcroft® 1279 Duragauge® pressure gauge provides dependability, safety and performance.
- Accuracy: ASME B40.100 Grade 2A (±0.5% of span)
- Dial Size and Case Style: 4.5″ Solid front Vacuum
- Ranges: Compound, 15 to 30,000 psi
-
Sale!

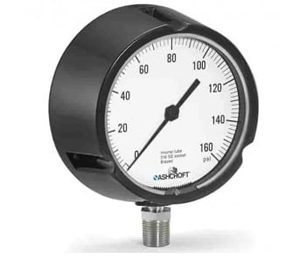

1290 Direct Drive Gauge
The Ashcroft® 1290 direct drive gauge uses a unique movementless system that provides exceptional performance within the process industry.
- Accuracy: ASME B40.100 Grade 2A (±0.5% of span)
- Dial Size and Case Style: 4 1/2 Solid front
- Ranges: 15 to 2,000 psi
