Low Pressure Speedbite

Original price was: £1,000.00.Current price is: £800.00.

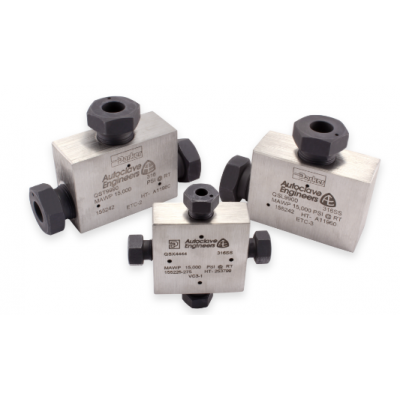

Parker Autoclave Engineers Low Pressure “Speedbite” and “Mini” Series fittings are designed to work with 10V/SW Series and Mini Series Low Pressure Valves as well as Low Pressure Tubing made of commercially sized 316/316L SS in the “Annealed” condition. Pressures to 15,000 psi and sizes from 1/16″ to 1/2″ are readily available.

The Speedbite connection is a single-ferrule bite-type compression fitting engineered for use with tubing designed by Parker Autoclave Engineers to a controlled hardness. Speedbite fittings employ a bite-type compression style single ferrule that is manually tightened.

Description

• Single-ferrule compression sleeve connections for up to 15,000 psi MAWP
• Operating temperatures from -100°F (-73°C) to 650°F (343°C)
• Fast easy 1-1/4 turn make-up of connection
• Available sizes are 1/16″, 1/8″, 1/4″, 3/8″, and 1/2″
• Fittings manufactured in accordance with ASME B31.3 Chapter IX standards with UNS S31600/S31603 dual rated 316/316L material cold worked to Parker Autoclave proprietary standards (optional material available).
• Tubing manufactured to commercial OD tolerances ASTM A269 dual rated 316/316L material to a controlled hardness to facilitate proper ferrule bite.
• Molybdenum disulfide-coated gland nuts to prevent galling
